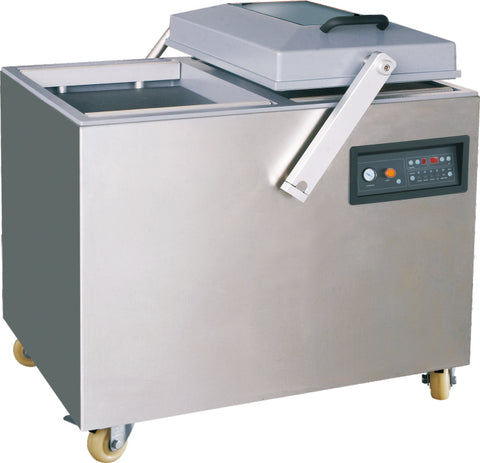

600SA Double Chamber Vacuum Machine

View product brochure

The 600SA is a double chamber vacuum sealer — two pouches are loaded simultaneously and sealed in a single cycle, making it the highest-throughput option in Emmoco’s vacuum range. With a vacuum capacity of 63 m³/h and a cycle time of 20–40 seconds, it suits production lines where volume matters.

Four 600 × 10 mm seal bars handle wide or doubled-up pouches in one pass. The automatic swing arm keeps the lid movement consistent and reduces operator fatigue. Stainless steel construction with integrated mobility wheels means it can move around the facility when needed.

Applications include food processing, medical device packaging, and industrial hardware kitting — any application requiring a reliable vacuum seal on composite or aluminium foil film. Note the 600SA requires a 3-phase 380V power supply; for single-phase sites see the DQ500S or ZS420.

Main Features

• Dual-chamber design for increased efficiency
• Ideal for food, medical, and hardware packaging
• Automatic swing arm for steady performance
• Durable stainless steel construction with mobility wheels
• Suitable for composite and aluminum foil film packaging
• High-performance vacuum sealing with a capacity of 63 m³/h
• Quick work cycle (20–40 sec/cycle) for enhanced productivity
• Four heating seal bars for secure and efficient sealing
• Easy-to-use control panel for precise adjustments
• Schneider and Renew electrical components for reliability

Technical Data

• Vacuum Capacity: 63 m³/h
• Work Cycle: 20–40 sec/cycle
• Heating Seal Bar QTY: 4
• Heating Seal Bar Size: 600 × 10 mm
• Power Supply: 380V / 3ph / 50Hz, 2.2 kW

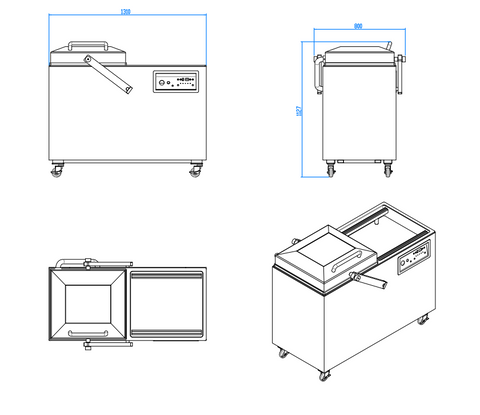

• Machine Size: 1310 × 800 × 1150 mm
• Net Weight: 200 kg

Contact Emmoco at sales@emmoco.com.au or 03 8376 8088 for specifications or a quote.
