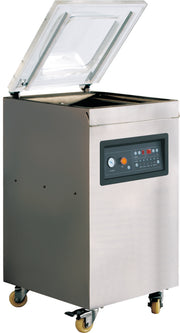

DQ500S Floor Type Vacuum Machine

View product brochure

The DQ500S is a floor-standing vacuum sealer for single-phase sites that need more capacity than a benchtop unit. Two 500 × 8 mm seal bars let it handle larger or wider pouches, and the 25–50 second cycle suits applications where load size varies.

The transparent lid gives full visibility of the vacuum draw. An optional gas-filling function supports modified atmosphere packaging (MAP), displacing oxygen with nitrogen or CO₂ to extend shelf life for fresh food products. Heavy-duty wheels make it easy to reposition on the floor without disassembly.

The DQ500S sits between the benchtop ZS420 and the high-throughput dual-chamber 600SA. It runs on standard single-phase 220V — no 3-phase supply required.

Main Features

• Floor-standing design for high-volume packaging needs
• Ideal for food, medical, and industrial applications
• Transparent lid for process visibility
• Optional gas-filling function for modified atmosphere packaging
• Heavy-duty wheels for easy transport and stability
• 20 m³/h vacuum capacity
• Dual heating seal bars (500 × 8 mm)
• Adjustable work cycle (25–50 sec/cycle)
• Robust stainless steel build
• Schneider and Chint electrical components

Technical Data

• Vacuum Capacity: 20 m³/h
• Work Cycle: 25–50 sec/cycle
• Heating Seal Bar QTY: 2
• Heating Seal Bar Size: 500 × 8 mm
• Power Supply: 1P 220V 50/60Hz, 1.0 kW
• Machine Size: 600 × 635 × 900 mm
• Net Weight: 90 kg

Contact Emmoco at sales@emmoco.com.au or 03 8376 8088 for specifications or a quote.
